Double Flow Filter Nozzle

Double Flow Rate Wedge Wire Filter Nozzle: Advanced Filtration Technology

The Double Flow Rate Wedge Wire Filter Nozzle is a state-of-the-art filtration component designed for high-efficiency separation of solids from liquids or gases. Known for its robust construction and versatility, it serves a wide range of industries with its innovative double flow design.

Synonyms and Composition

Also known as:

• Plate type Screen Nozzle

• Wedge Wire Nozzle

• Vee Wire Filter Nozzle

• Johnson Screen Nozzle

• Continuous Slot Screen Nozzle

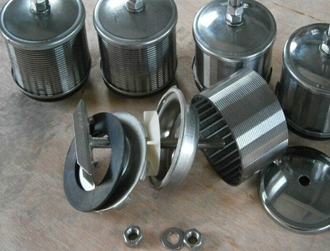

Comprising a wedge wire screen, cover plate, M10 screw, nuts, rubber gasket, and an impeller for the double flow version (DF), it stands out for its efficient filtration process.

Material Selection

Available in a variety of materials, including:

• Stainless Steel (Grades 304, 321, 316, 316L, 904L)

• Hastalloy B and C

• Duplex Stainless Steel (Grades 2205, 2207)

These materials ensure superior corrosion resistance and durability for reliable performance in diverse applications.

Diameter and Customization

Standard diameter of 82mm, with the flexibility for customization to suit specific client needs.

Note： DF is double flow with impeller；SF is single flow without impeller

Double Flow Rate Filter Nozzle: Composition: The Double Flow Rate Filter Nozzle consists of a wedge wire screen and a central pipe. The wedge wire screen is designed with V-shaped wires that create a filtering surface, allowing for efficient filtration. The impeller facilitates the distribution of the flow evenly across the entire screen surface.

Advantages of Double Flow Rate Design

1. Enhanced Filtration Efficiency: The double flow rate capability allows for a higher flow rate capacity, improving overall filtration efficiency.

2. Reduced Pressure Drop: Even flow distribution across the screen surface minimizes pressure drop, optimizing performance and reducing energy use.

3. Self-Cleaning Feature: The continuous slot design prevents clogging and enables self-cleaning during backwashing or flushing.

4. Versatile Applications: Suitable for a variety of industries, including water treatment, chemical processing, petrochemical, food and beverage, and mining and minerals.

Applications

• Water Treatment: Ensuring clean and safe water supply by removing suspended solids and impurities.

• Chemical Processing: Separating solid particles from liquids or gases, enhancing product quality and process efficiency.

• Petrochemical Industry: Filtration of oil and gas, and refinery processes, removing contaminants for smooth operations.

• Food and Beverage: Filtration of liquids for clarity, particle removal, and safety.

• Mining and Minerals: Efficient solid removal for resource recovery and reuse.

Single Flow Rate Filter Nozzle

The Single Flow Rate Filter Nozzle, without an impeller, offers a simpler, more compact design ideal for applications with space constraints or lower flow rate requirements.

Single Flow Rate Advantages

1. Compact Design: Space-saving and suitable for limited space applications.

2. Easy Installation: Simplified design for straightforward installation and maintenance.

3. Cost-Effective: Generally more affordable compared to double flow rate nozzles.

Single Flow Rate Applications

Commonly used in small-scale water treatment, aquariums, and residential filtration systems.

Conclusion

Both the Double Flow Rate and Single Flow Rate Wedge Wire Filter Nozzles are indispensable for efficient and reliable filtration processes. The double flow rate nozzle excels with its enhanced efficiency and reduced pressure drop, while the single flow rate nozzle provides a cost-effective solution for compact and easy installation needs. These nozzles are pivotal in maintaining clean and safe processes across various industries.
