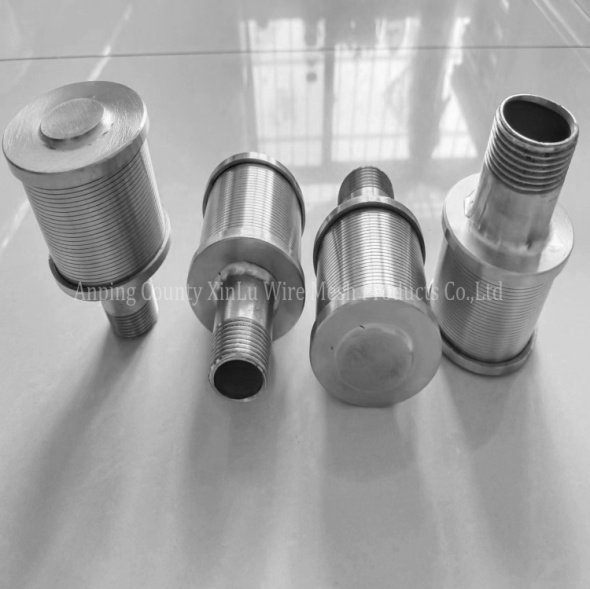

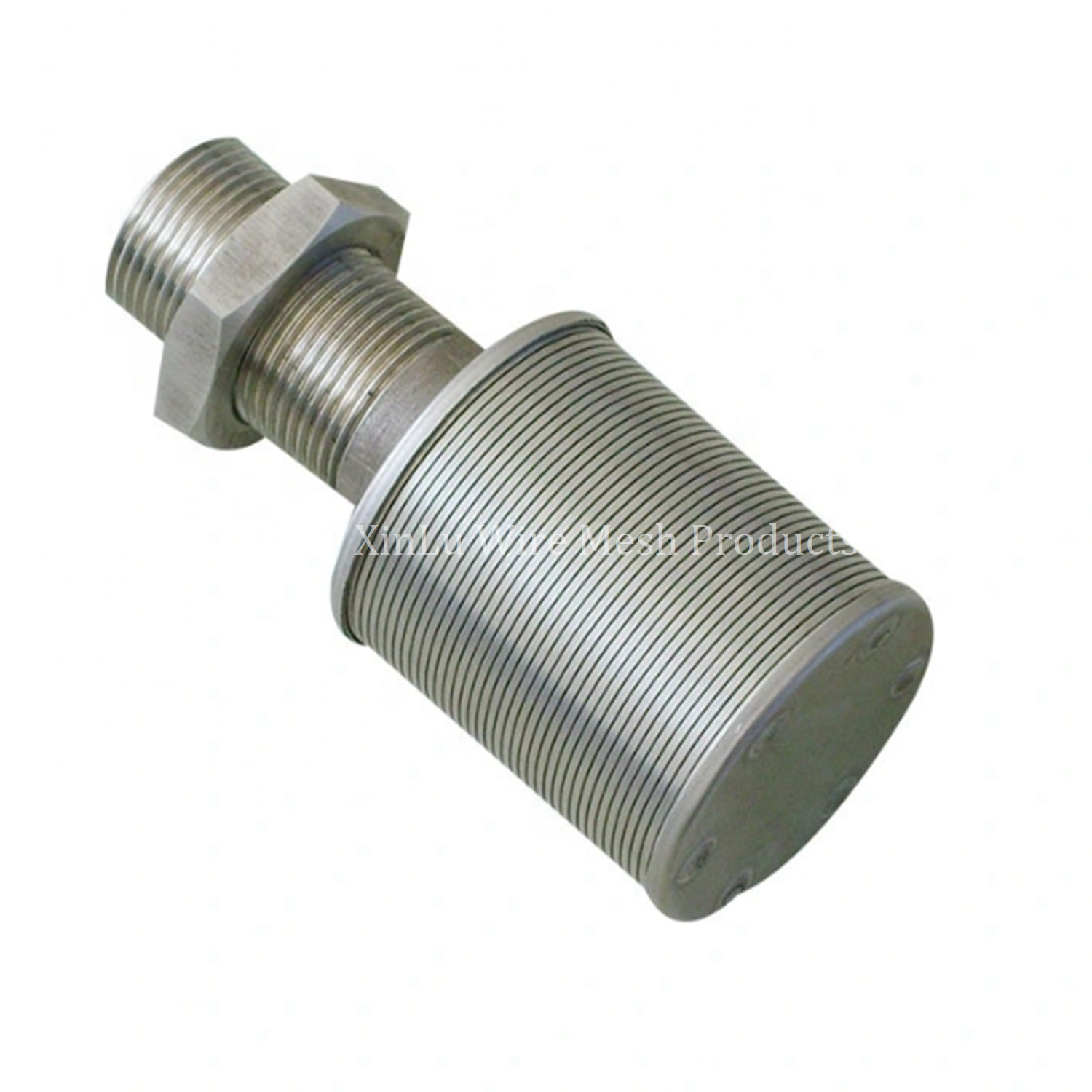

Pure Round Filter Nozzle

Pure Round Filter Nozzle: Enhanced Filtration Solutions

The Pure Round Filter Nozzle, synonymous with the renowned Johnson wire screen nozzle, is a versatile component designed for superior filtration performance. These water and gas strainer nozzles are crafted to meet diverse flow requirements and are manufactured in various alloys, making them a staple in filtration and treatment systems.

Material Excellence

Constructed from a range of high-quality materials, including:

• Stainless Steel (Grades 304, 321, 316, 316L, 904L)

• Hastalloy B and C

These materials ensure exceptional corrosion resistance and durability for reliable performance in various applications.

Diameter Customization

Available in standard diameters from 45 to 82mm, with the flexibility for customization to suit specific client needs.

Threaded Compatibility

Offered in multiple threaded types:

• M24, M32

• 3/4 inch, 1 inch

• Available in BSP or NPT thread types

Accessories

Comes complete with:

• A nut

• A stainless steel gasket

• A rubber gasket (as per customer demand)

Xinlu Company Manufacturing Process

Stamping (Rivet welding)

Lathe parts

Classification:

1. Production Process:

• Stamped screen nozzles

• Lathed screen nozzles

2. Flow Rate:

• 0.5 ton screen nozzle

• 1 ton screen nozzle

• 2 ton screen nozzle

• 3 ton screen nozzle

• 5 ton screen nozzle

3. Style:

• Quick Install Single Head Screen Nozzle

• Double Head Screen Nozzle

• Long Handle Screen Nozzle

• Large Long Handle Pipe Screen Nozzle

• Plate Type Screen Nozzle

• Double Flow Rate Screen Nozzle

• Pure Round Screen Nozzle

Advantages

1. Non-Clogging Design: The wedge wire filter nozzle features a non-plugging slot design, ensuring continuous and efficient filtration without blockages.

2. Versatile Applications: Commonly used as under drain media retention elements or flow distributors in demineralizers, water softeners, pressure sand filters, and gravity sand filters.

3. Collector Function: Can be installed uniformly across a tray plate to serve as collectors at the bottom of vessels, offering a high open area and preventing clogging.

4. High Flow Capacity: Suitable for various industrial applications due to their large flow capacity.

5. Rigid Construction: The vee-wire wrapped around support rods in a helix pattern provides rigidity and durability, ensuring long-lasting performance.

Applications

• Water Treatment: Widely used in water treatment systems, including chemical engineering, petrochemical industries, pharmaceuticals, biochemical industries, power plants, and ion exchange systems.

• Industrial Filtration: Ideal for material retention and flow rate control in industrial filtration processes, such as oil and gas, mining, food and beverage, and pulp and paper industries.

Conclusion

The Pure Round Filter Nozzle, with its efficient and non-clogging filtration solutions, is a reliable component in water treatment and industrial filtration processes. Xinlu Company, a branch of Feiya Group, offers a wide range of these nozzles, customizable to meet specific requirements. Their advantages, such as non-clogging design, high flow capacity, and rigid construction, make them indispensable in various filtration applications.
